Create from Level

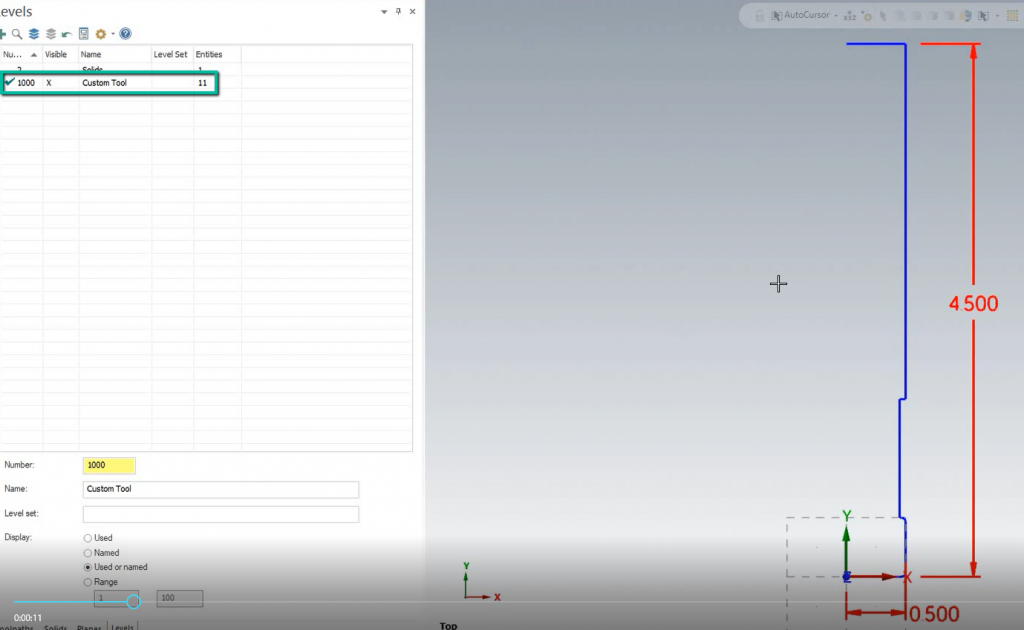

Draw the profile of your custom tool on its own level in the TOP plane, with the origin the middle of the bottom of the tool

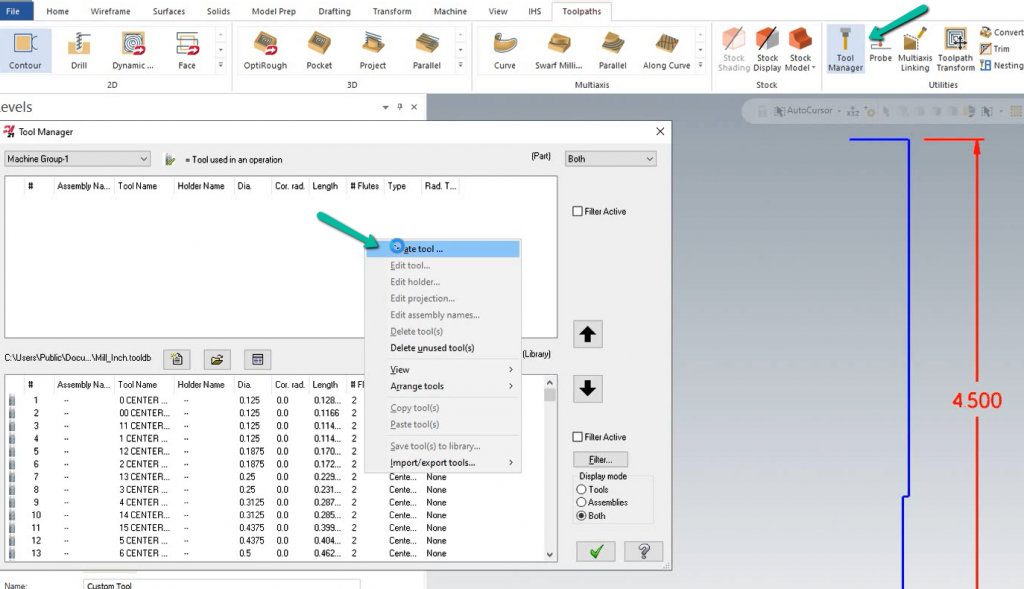

Open the Tool Manager found in the Toolpaths tab. In the right click context menu select Create tool

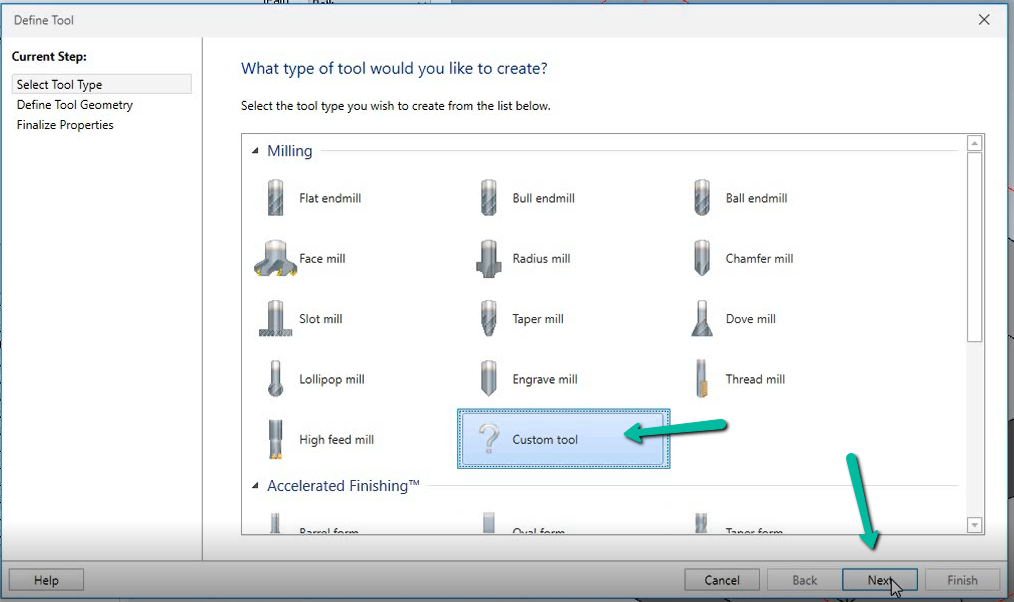

Select Custom tool and click Next

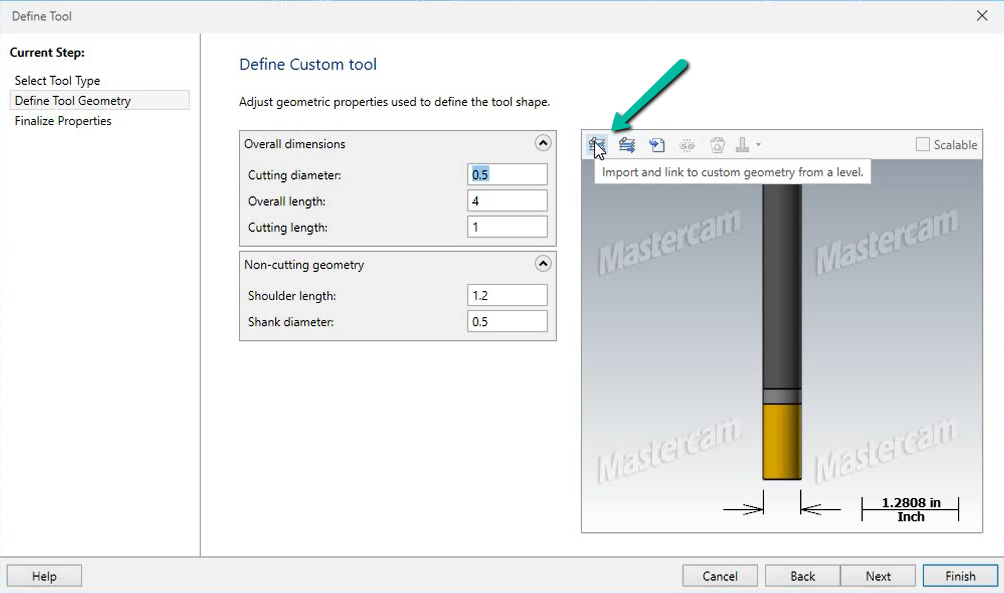

Click the Import and link custom geometry from a level icon

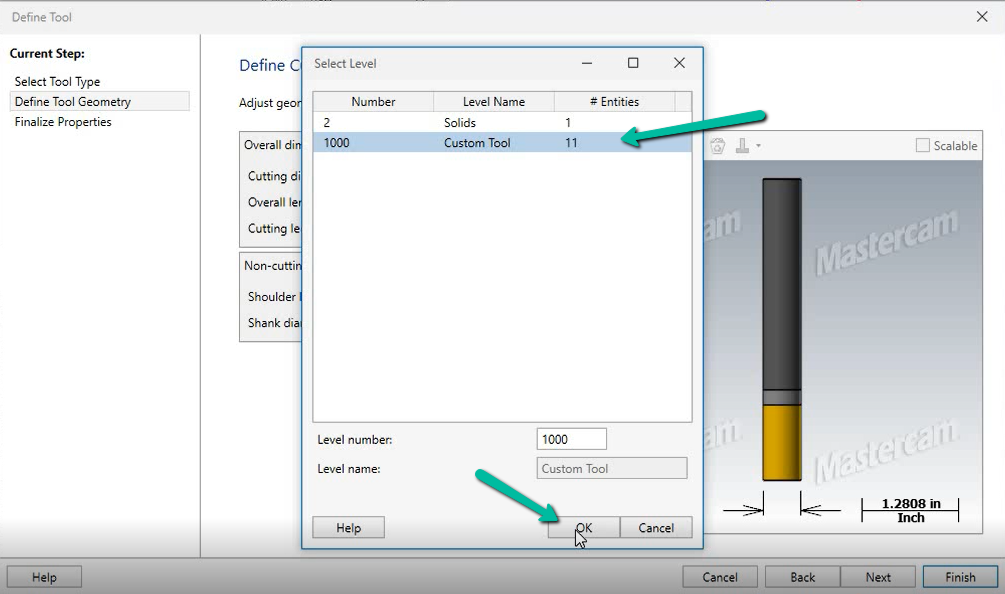

Select the level with your custom tool and click Ok

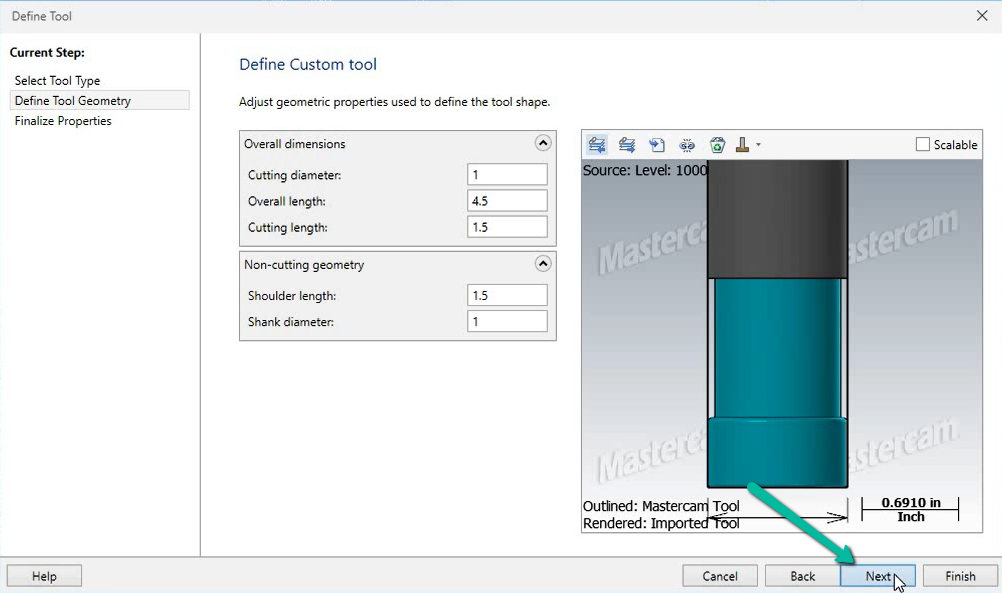

Click Next

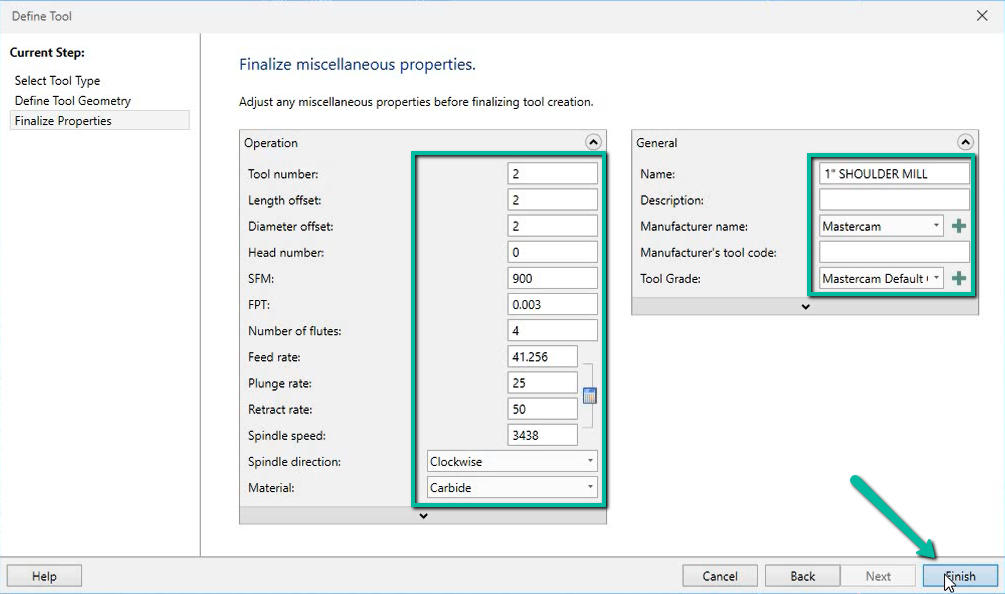

 Define the tool properties and click Finish

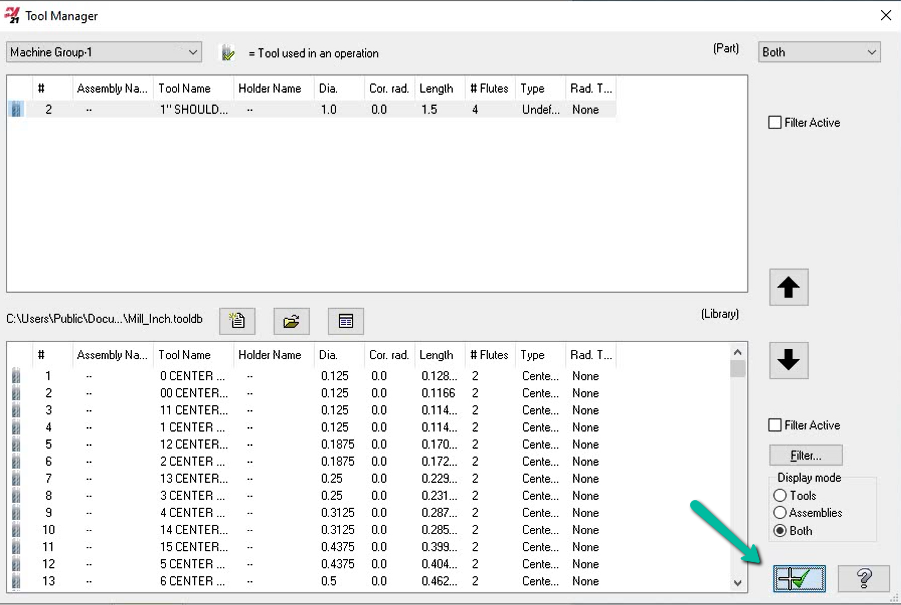

Select the Green Check to exit the Tool Manager

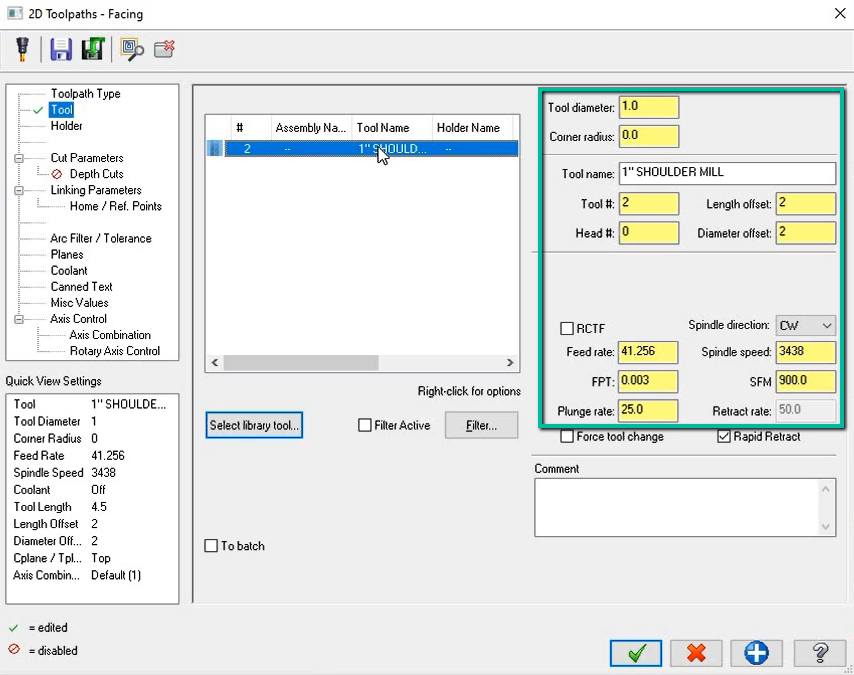

Select your custom tool in the toolpath parameters – the tool will load as it was defined

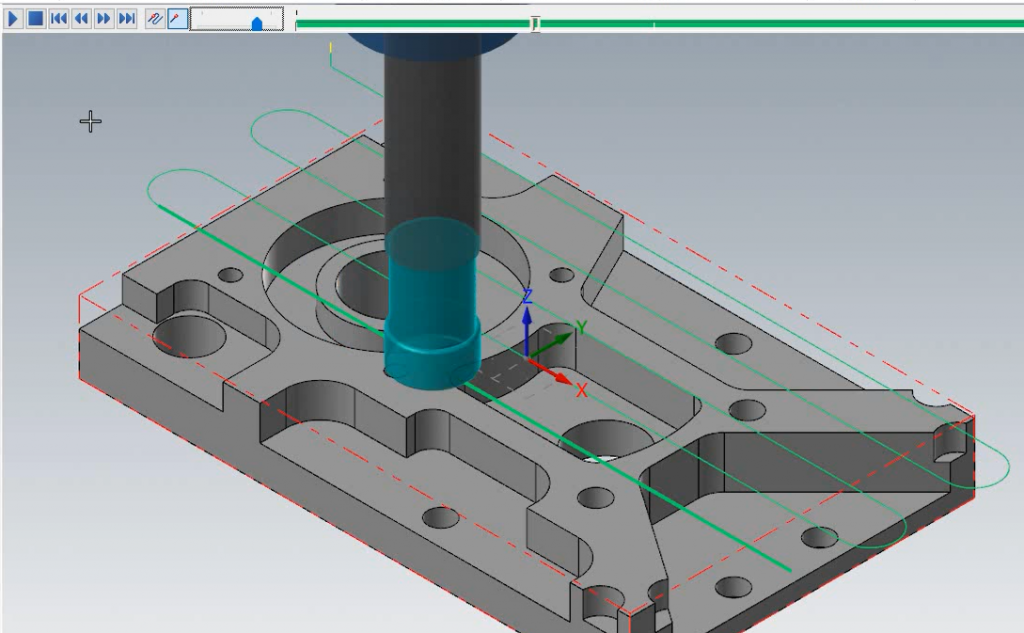

Backplot the toolpath – The custom tool will be displayed as shown
