Create from STP

Download a STEP file of the tool you want to define in Mastercam and place it in a known location.

In your Mastercam file open the Tool Manager found in the Toolpaths tab.

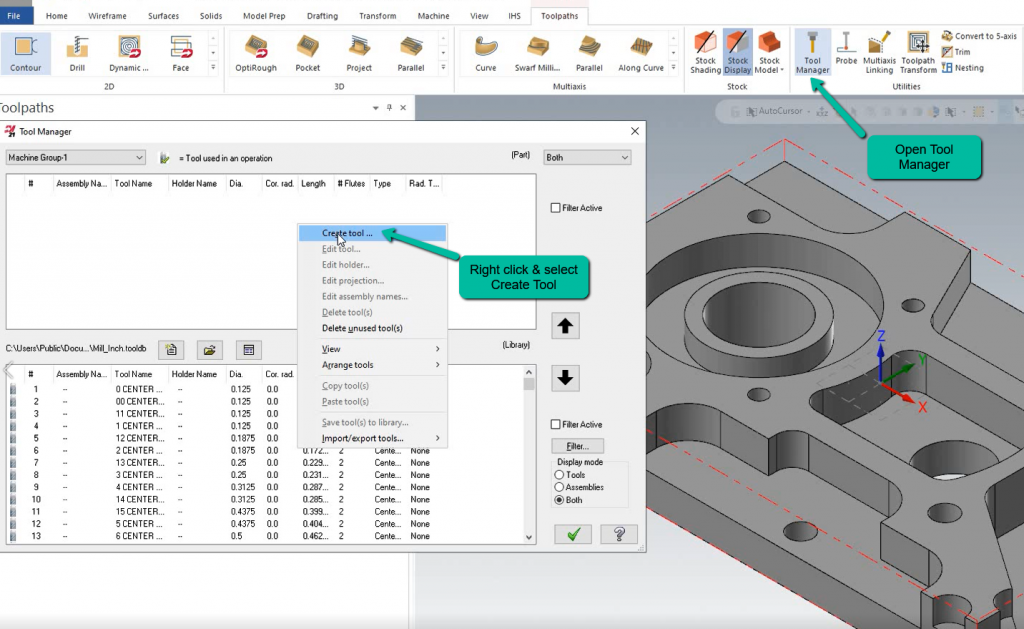

In the right click context menu select Create tool

Select Custom tool and click Next

 Click the Import custom geometry from a file icon then click Next

Select the download file and click Open

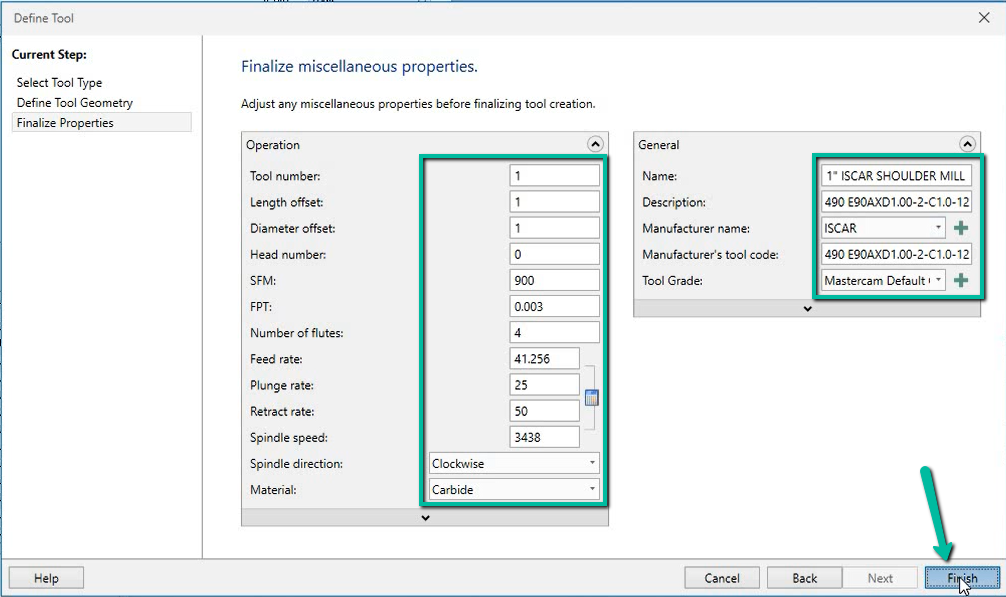

 Define the tool properties and click Finish

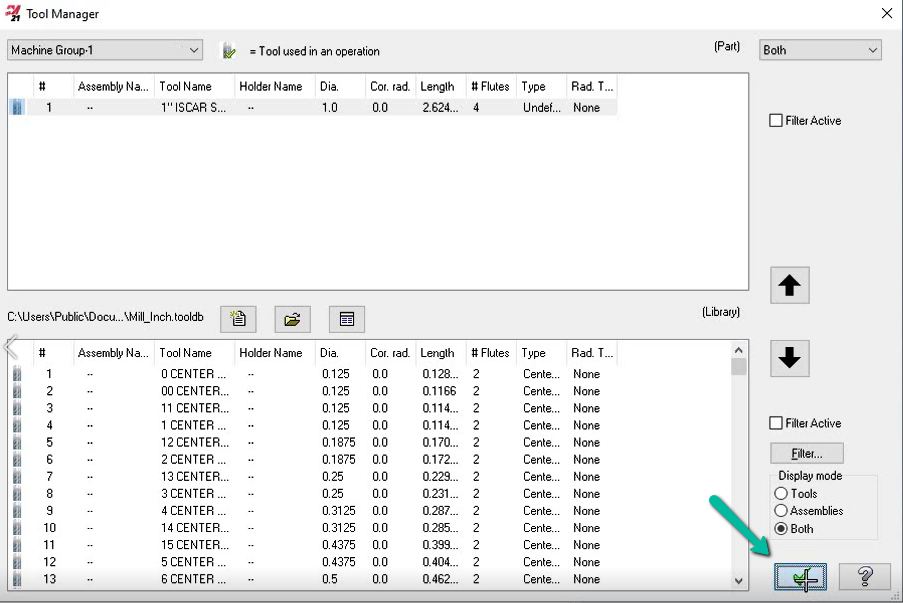

Select the Green Check to exit the Tool Manager

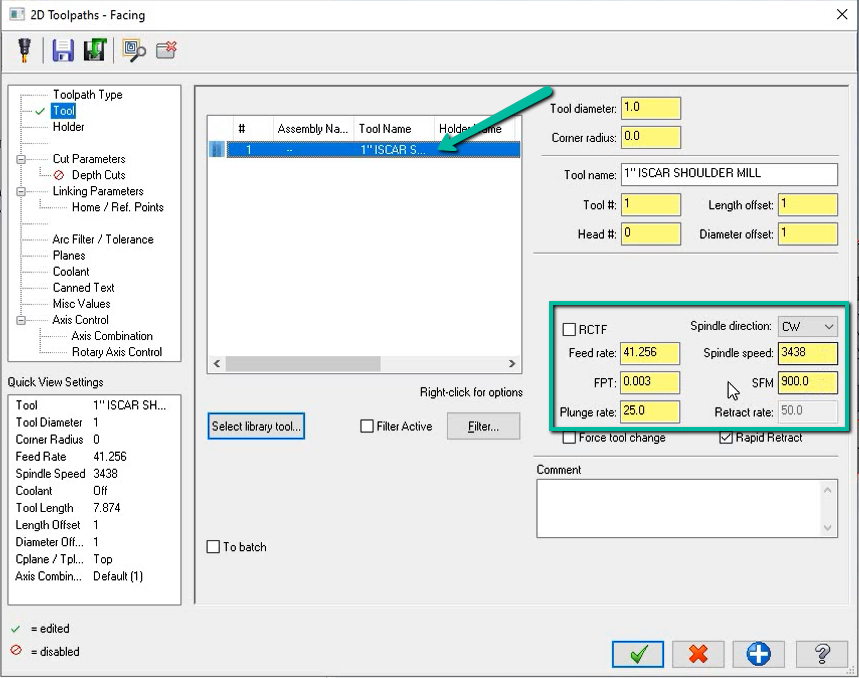

 Select your custom tool in the toolpath parameters – the tool will load as it was defined

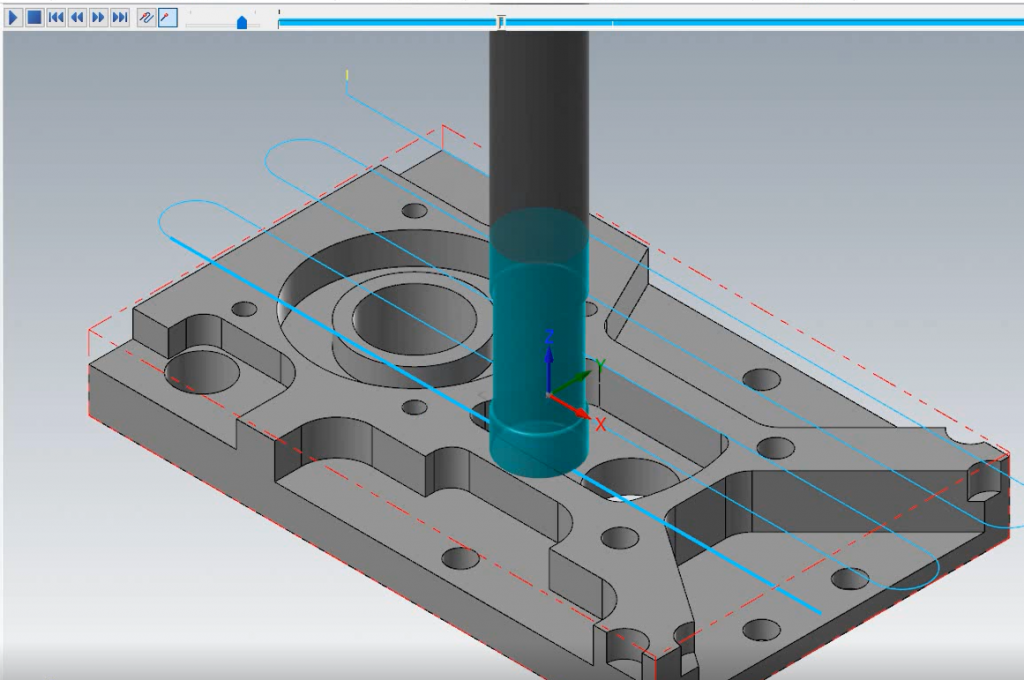

Backplot the toolpath – The custom tool will be displayed as shown
