Create Lathe Tool

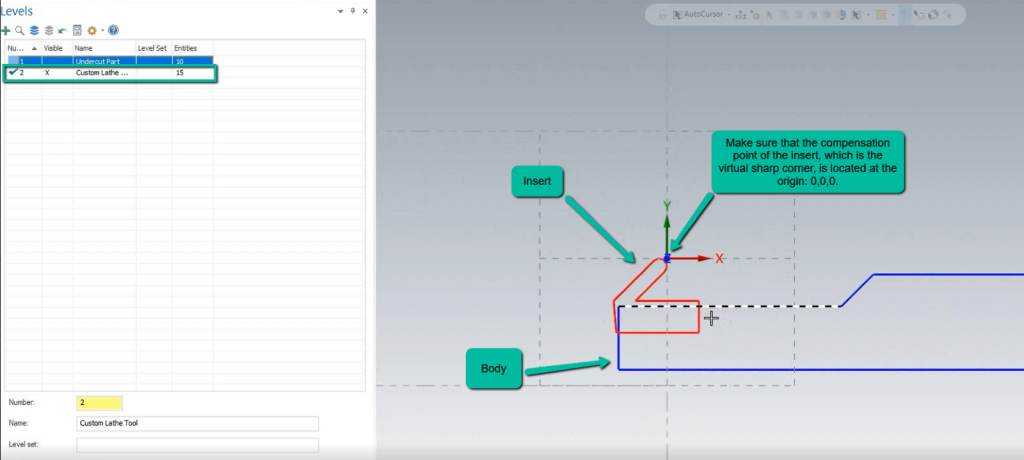

Draw the outline of your custom tool on its own level in Mastercam. The geometry must consist of two closed boundaries: one for the insert and one for the holder. There must only be those two contours.

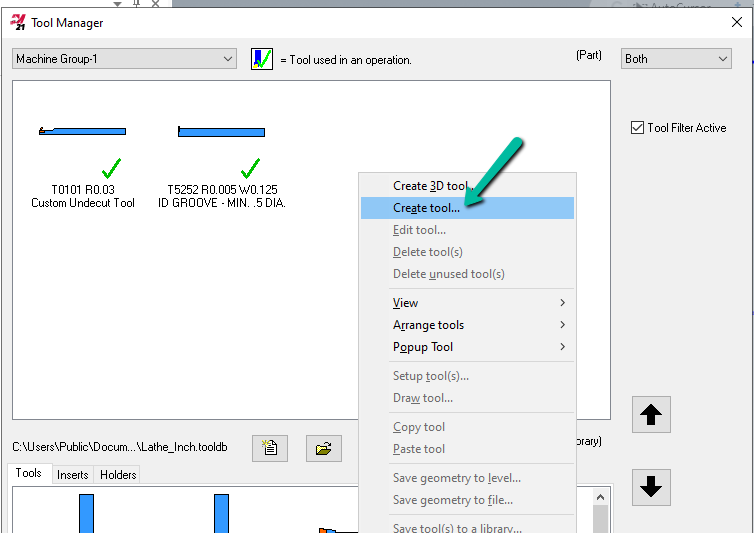

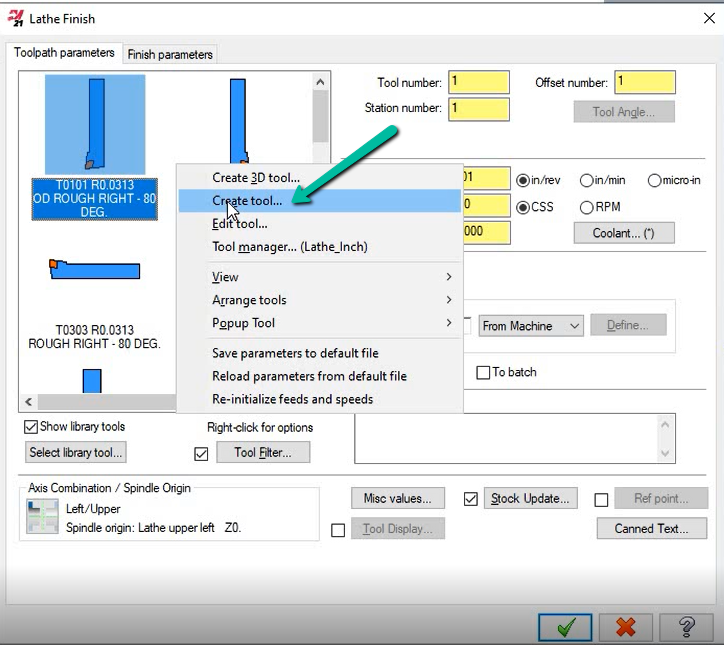

From your toolpath parameters right click in the tool selection dialogue and choose Create tool

This can also be done from the Tool Manager

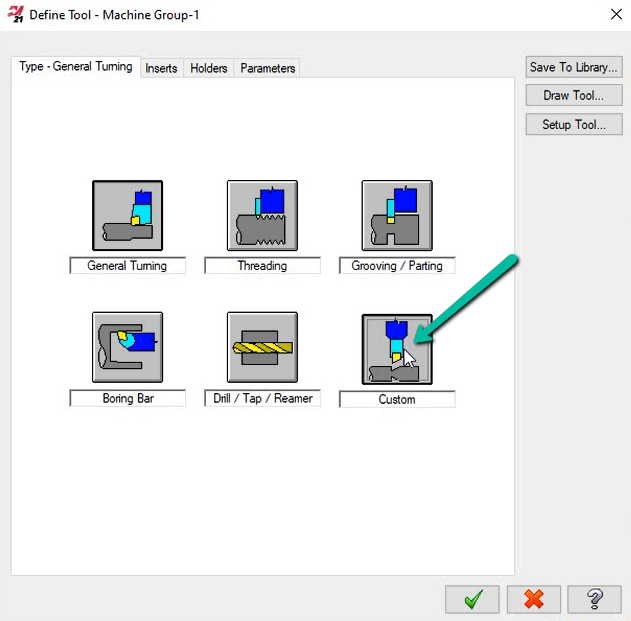

Select Custom

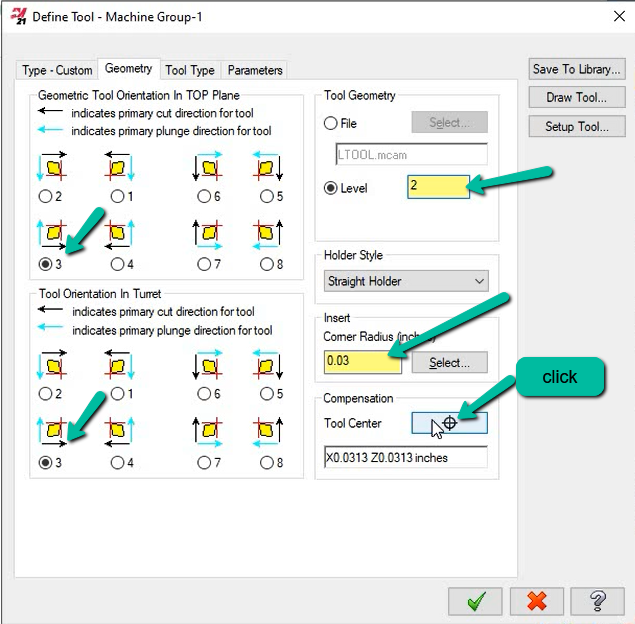

Define your primary cut & plunge directions – In this case #3 was suitable
Define the level you saved your custom tool geometry to – You can also link to an external file
Define the Corner Radius of your tool & select the Tool Center button to define the center of your cutting edge

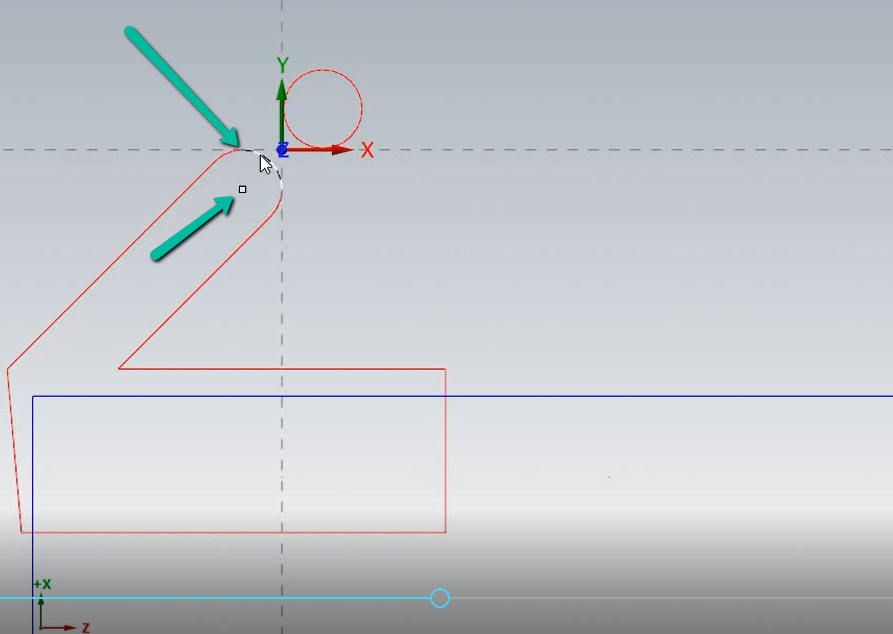

Select the center of tools cutting radius

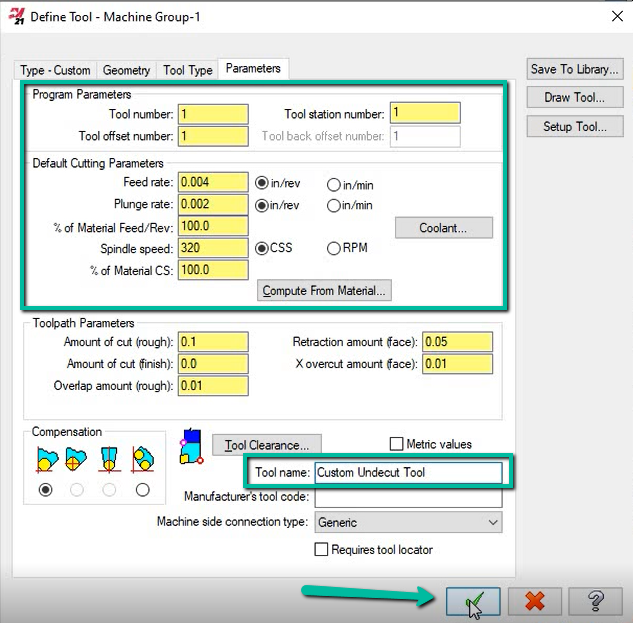

 Define the tool properties and click the Green Check

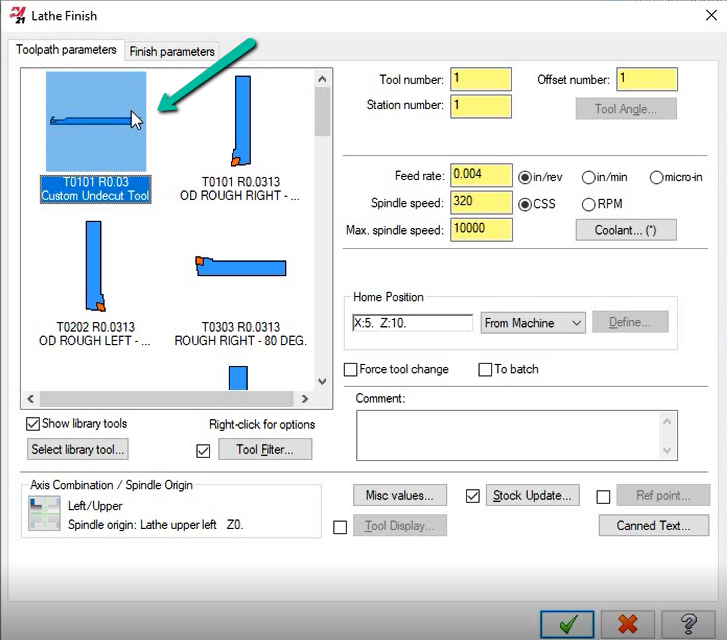

The tool will load as it was defined

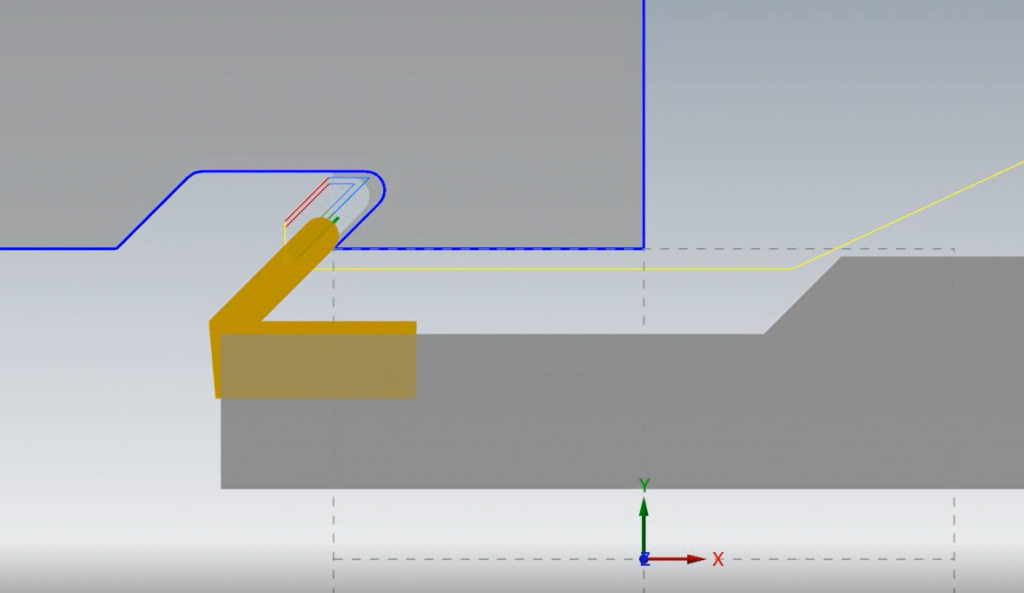

Backplot the toolpath – The custom tool will be displayed as shown
