Install Content

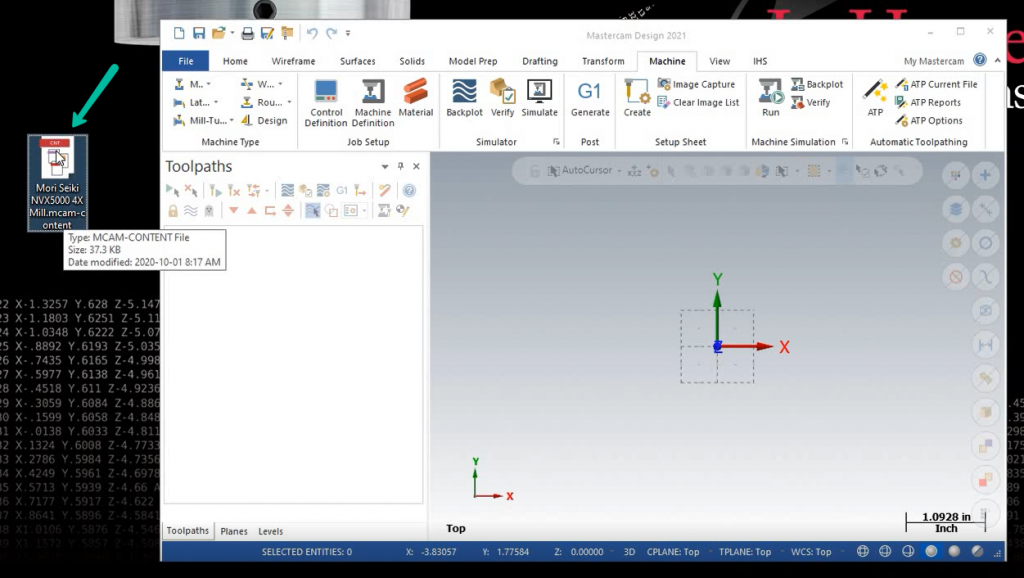

 Save the MCAM-CONTENT File that was sent to you on your desktop

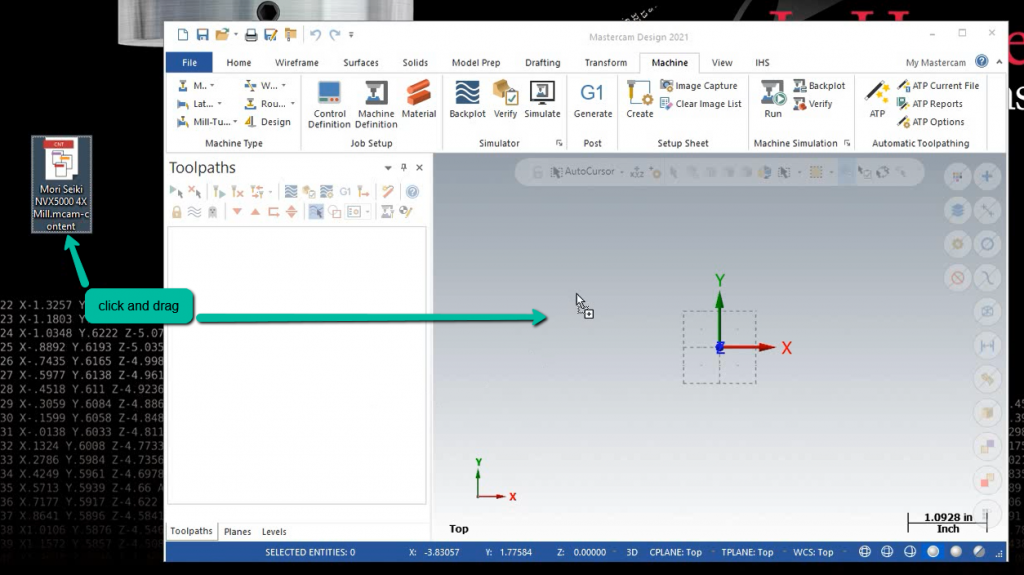

Drag the file into Mastercam

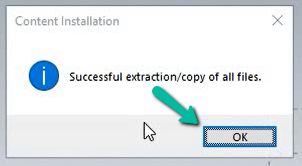

 You will be notified of Successful extraction – Click Ok

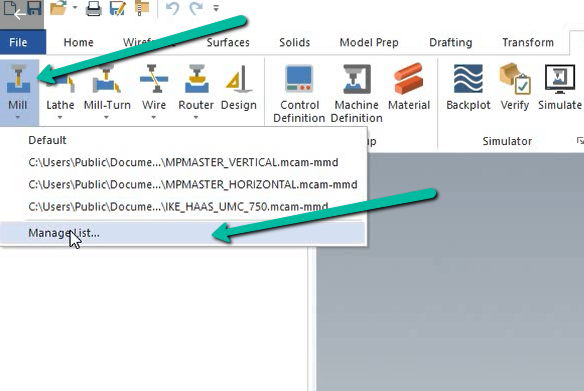

Select your machine type and click Manage List

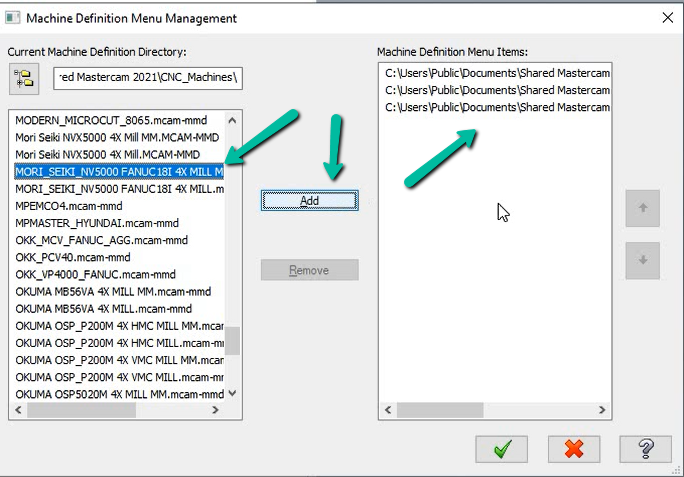

Select the Machine Definition and click Add

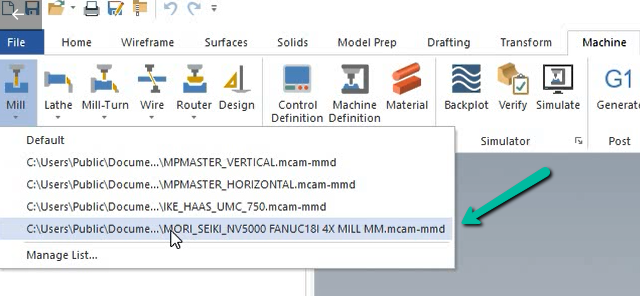

Select your machine type once more, then select the machine from the drop-down menu to load

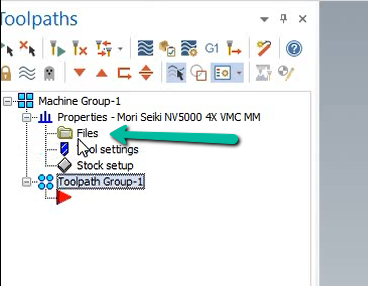

The Machine will load into your Toolpaths Manager, expand the Properties, and click on Files

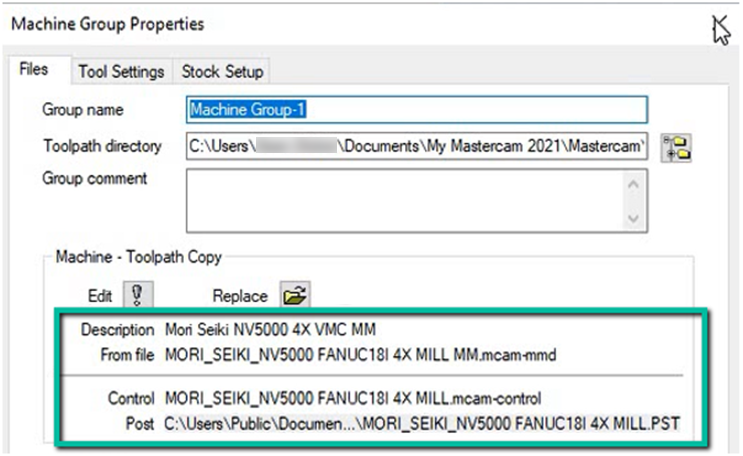

From here you can confirm that you have the correct Machine Definition, Control Definition and Post file.
