Network Software License Install

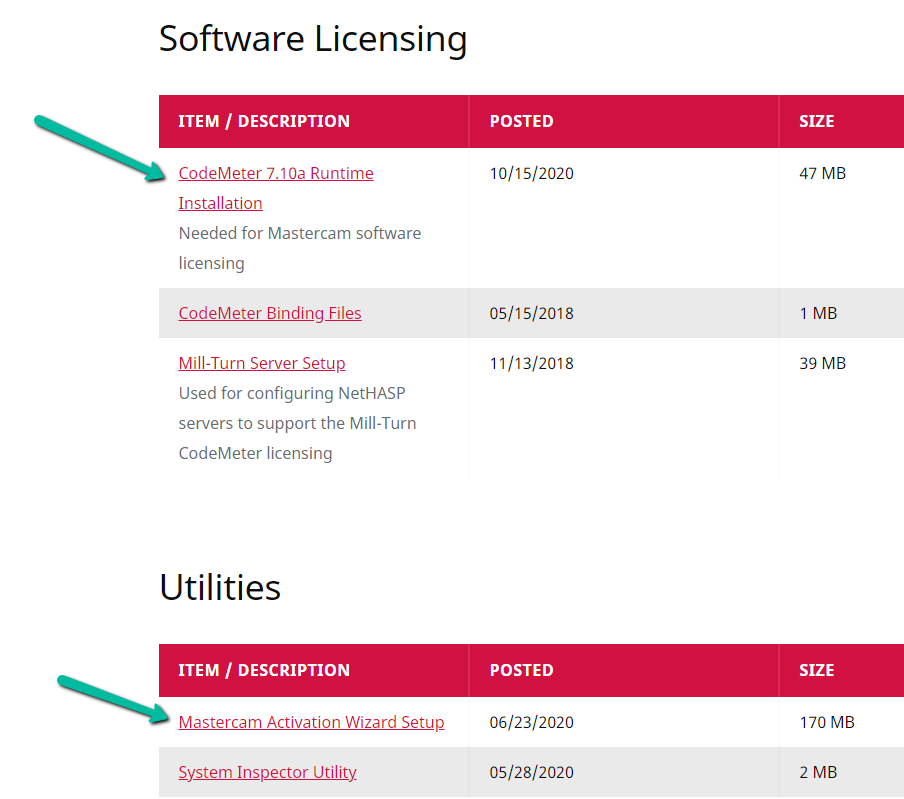

From the computer/server you intend to host your Mastercam License – Navigate to https://www.mastercam.com/support/technical-support/drivers-and-utilities/ download and install the following: CodeMeter, Mastercam Activation Wizard

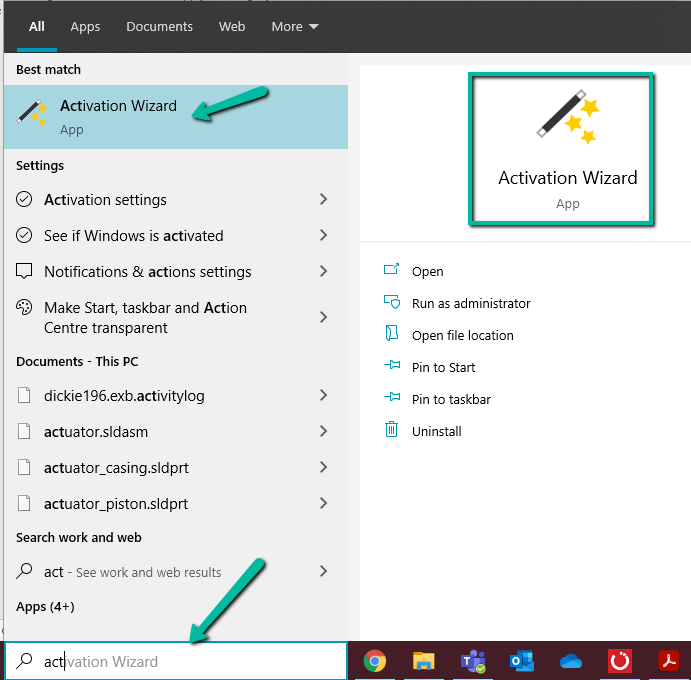

Once installed – Launch the Mastercam Activation Wizard

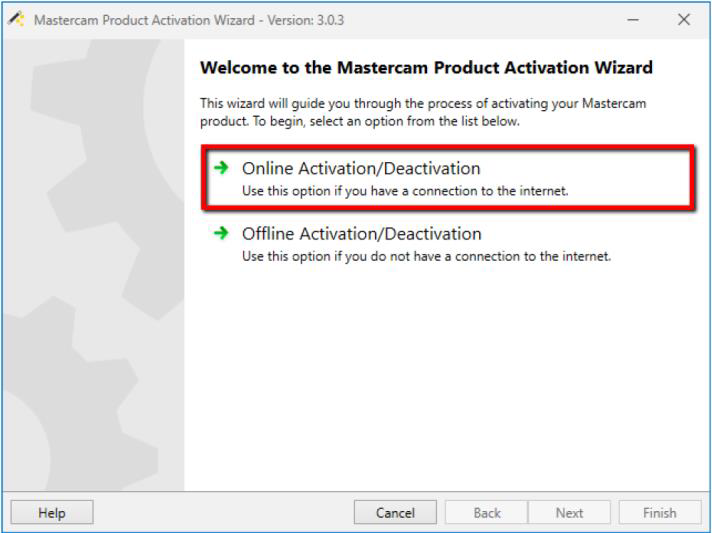

Select Online Activation/Deactivation

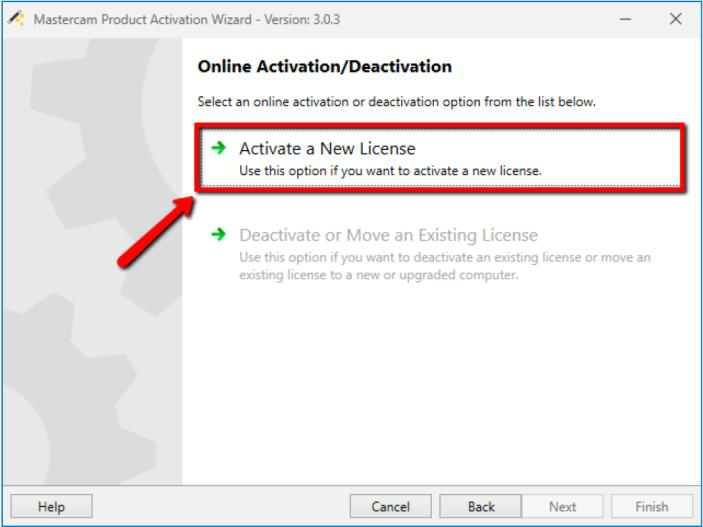

Select Activate a New License

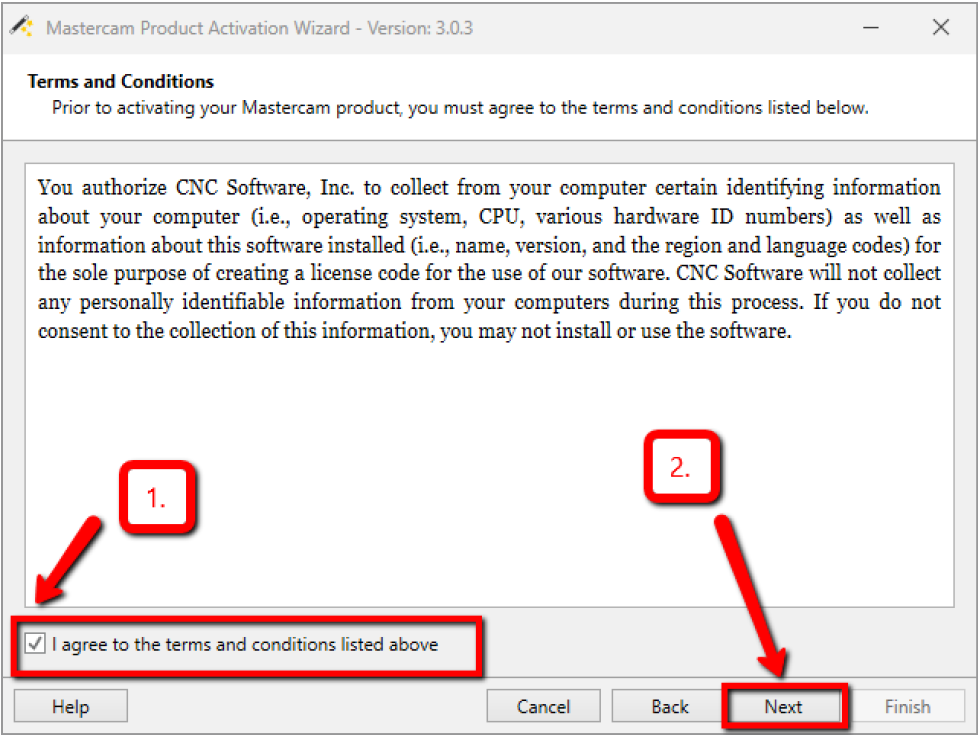

Accept the terms and condition then click Next

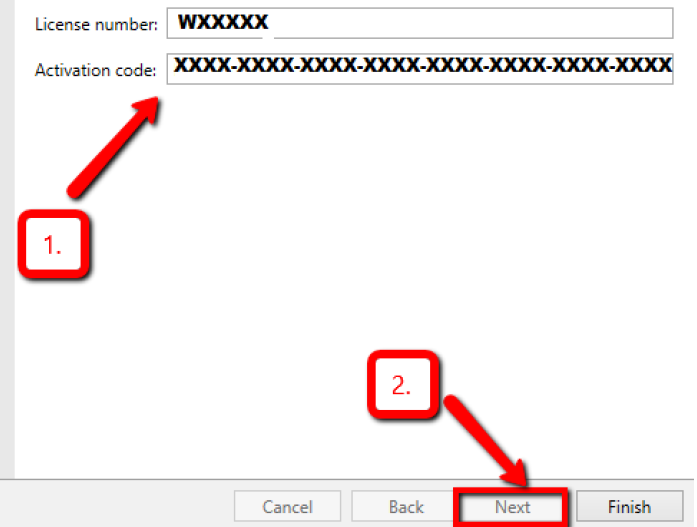

Enter your License number & Activation code:

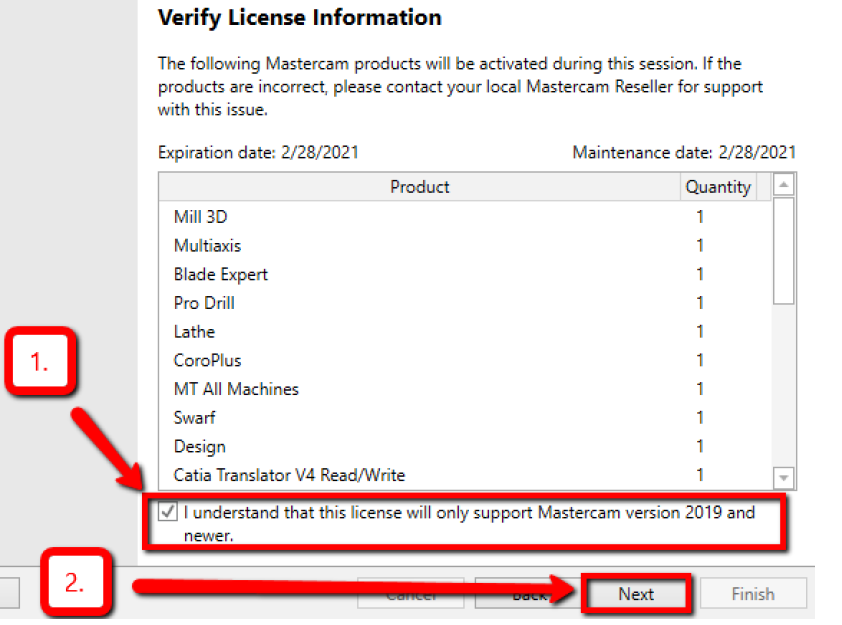

Verify your License information and click Next

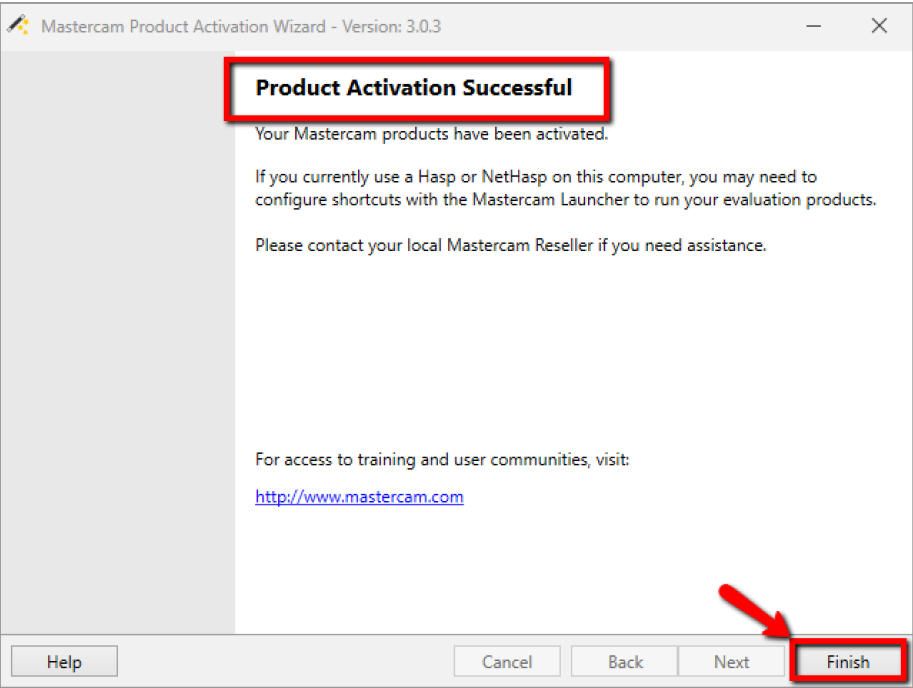

Your Mastercam License is now active.

Enable Networkable Software License

Open the System Tray and right click on the CodeMeter Icon

Open the WebAdmin

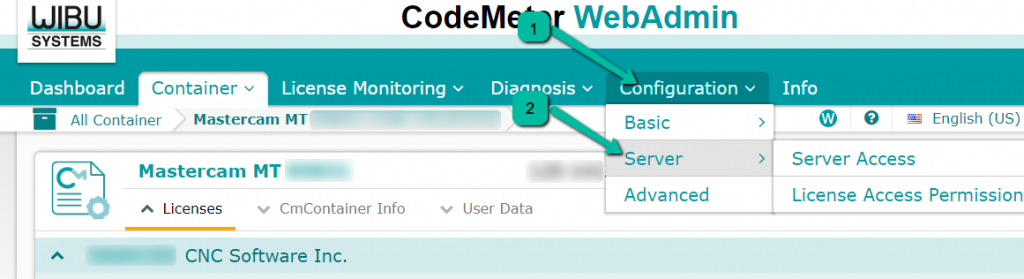

Hover your mouse over Configuration and select Server

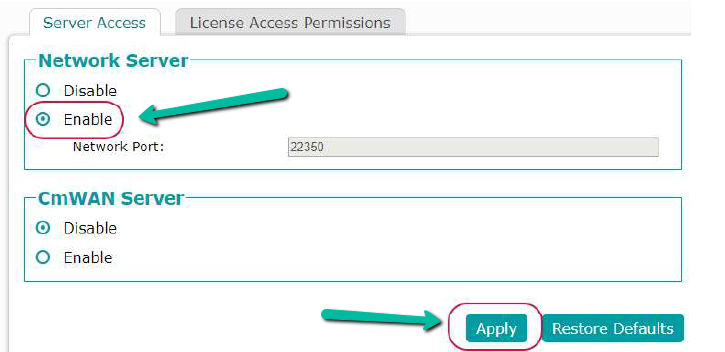

Enable the Network Server and click Apply

From your client computer launch Mastercam 2019 or newer. It is recommended to install the latest version CodeMeter on the client computers also.

************

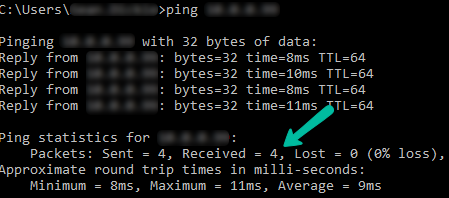

If no license is found, ping the IP address of the server from CMD to ensure you can communicate with the server

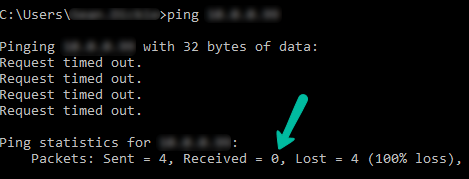

If the ping fails, contact IT support to establish communication with your Mastercam Server/Host Computer

If the ping is successful add the server IP address to the CodeMeter WebAdmin on the client computer.

Open the System Tray and right click on the CodeMeter Icon

Open the WebAdmin

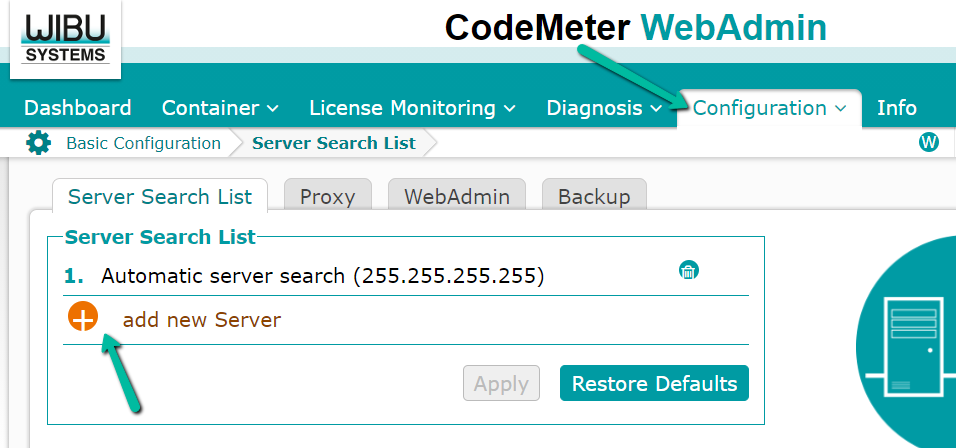

Click on Configuration then add new Server

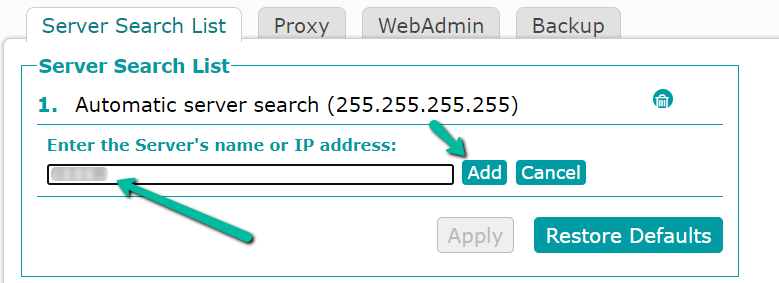

Enter the IP address of the Server/Host Computer then click Add

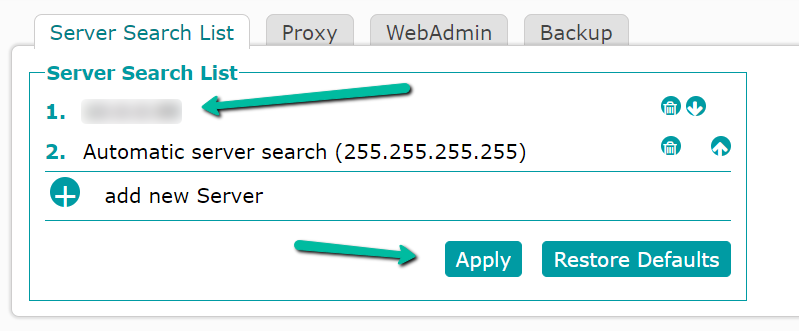

The IP will now be added to the Server Search List – Click Apply to save changes

Close the WedAdmin and try to launch Mastercam 2019 or newer.

If you are still not able to launch Mastercam please contact [email protected]
