Post Update – Advanced

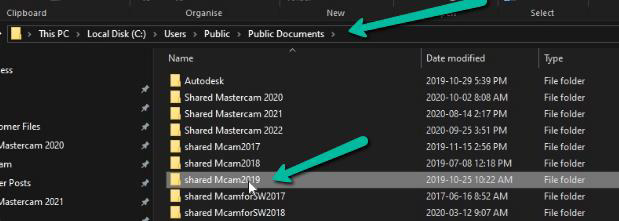

Navigate to the Shared Mastercam folder that contains the files you want to update

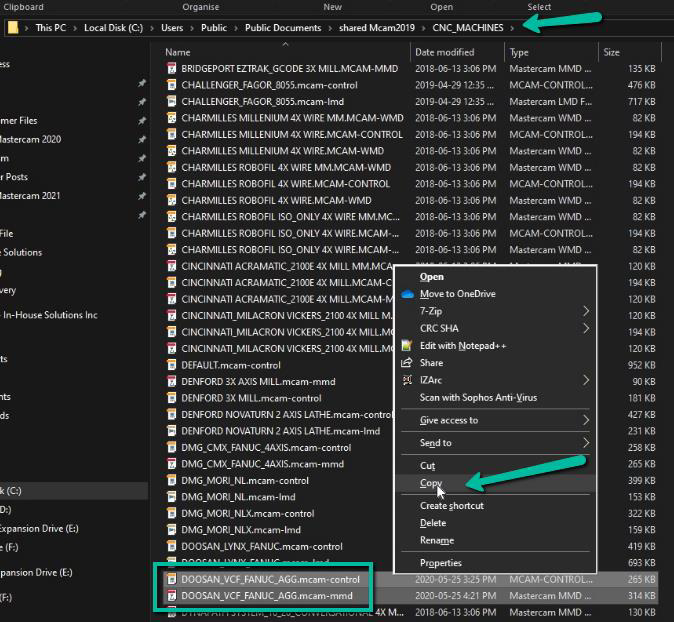

From the CNC_MACHINES folder Copy both the Control and Machine Definition

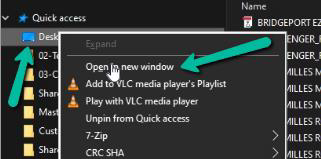

Right click on your desktop icon and click Open in new window

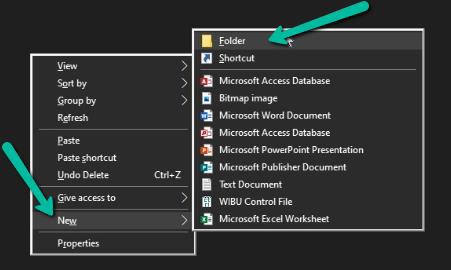

Create a New Folder on your desktop that matches the version of the files you want to update

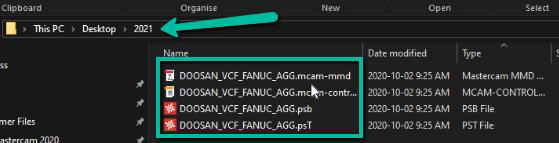

Paste your files into the newly created folder

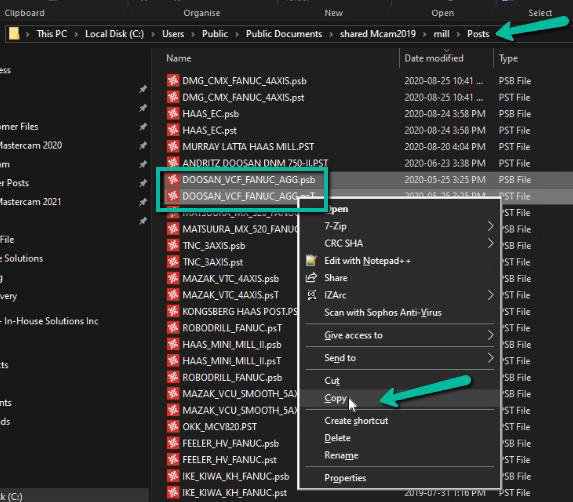

From the machine type > Posts folder Copy both the .pst and .psb
*older posts may use only a .pst file

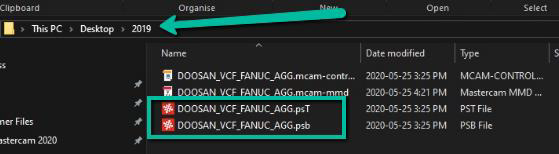

Paste your files into the newly created folder

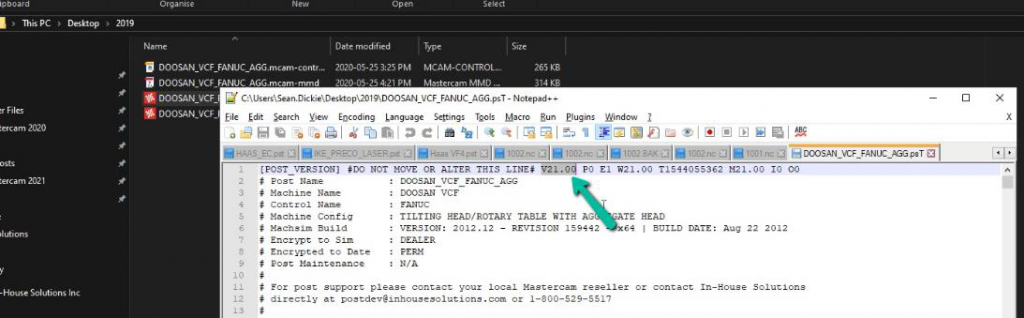

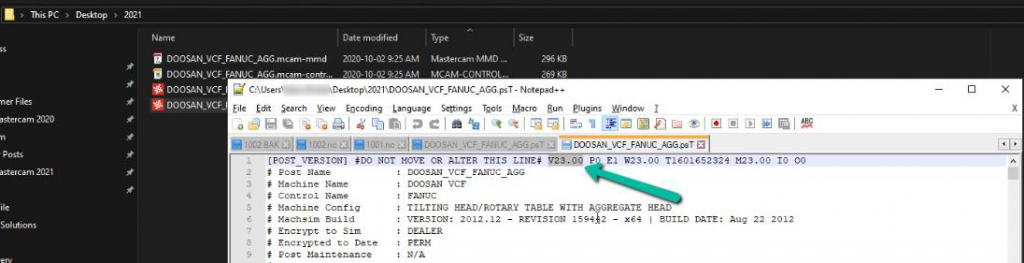

If you open the .pst with a text viewer you can double check the version V21.00 = 2019, V22.00 = 2020, V23.00 = 2021 etc.

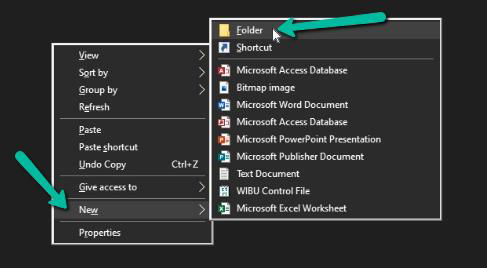

Create a New Folder on your desktop that matches the version of the files you want to update to

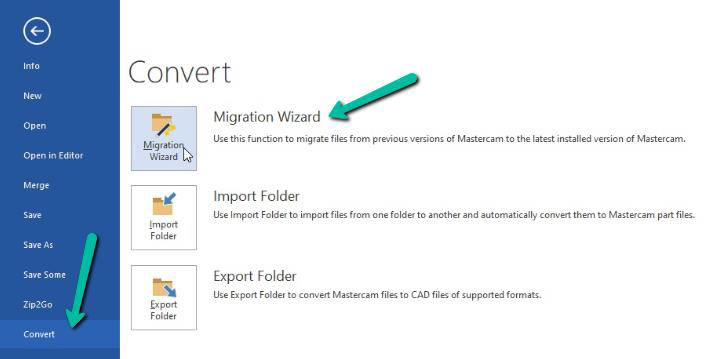

Open the version of Mastercam you want to update your files to and click File, Convert, and select the Migration Wizard

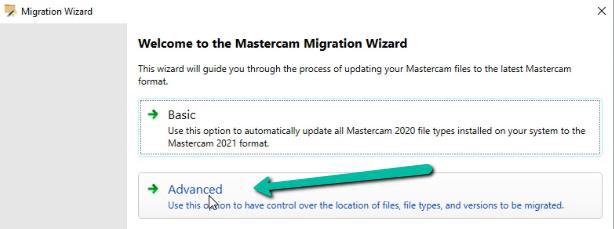

Choose Advanced

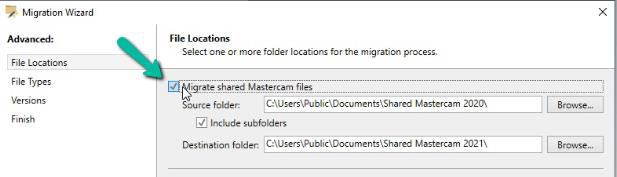

Select Migrate shared Mastercam files

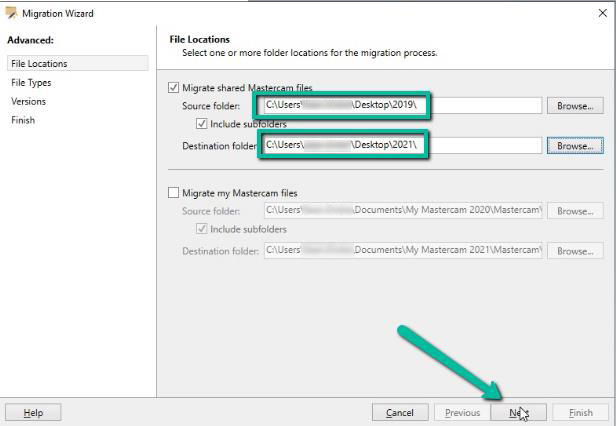

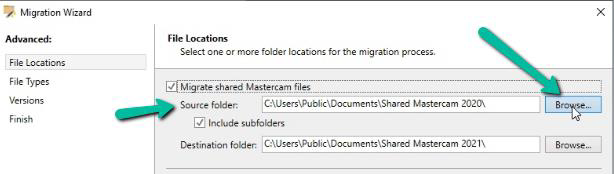

Click Browse to select you Source folder

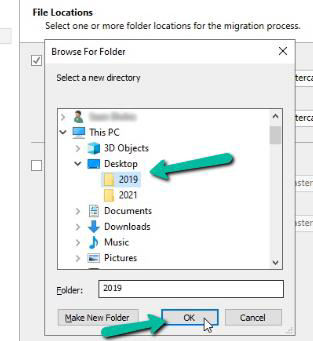

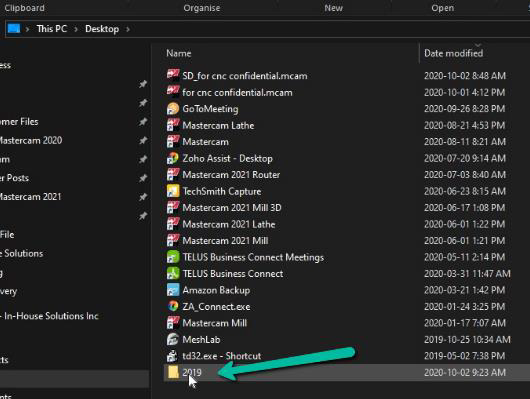

Select the folder you created on your desktop that holds the files you need to migrate

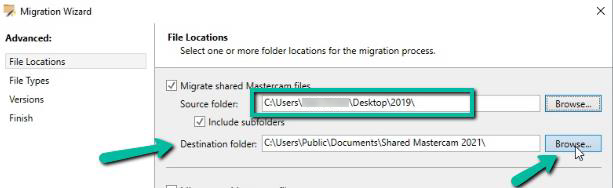

Repeat this step for the Destination folder picking the empty folder that you created

Once your source and destination files are correctly defined, click Next

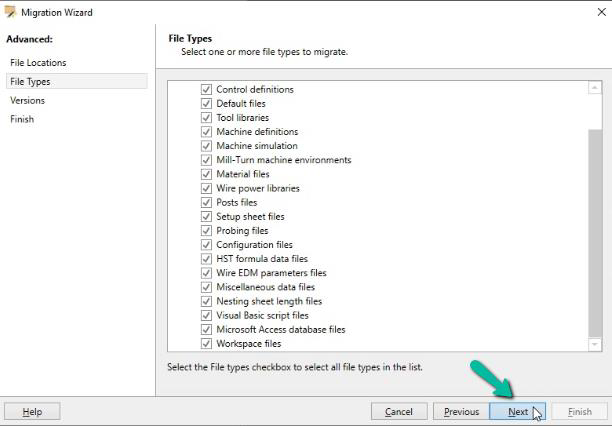

By default, all file types are selected, click Next

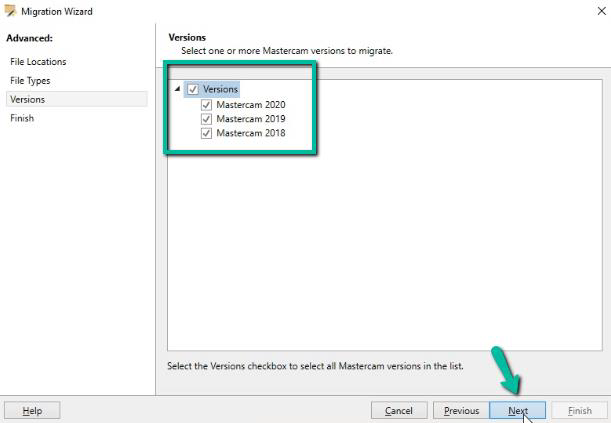

You can update files up to three version back – If your files are from an earlier version you will have to update them multiple times. Click Next

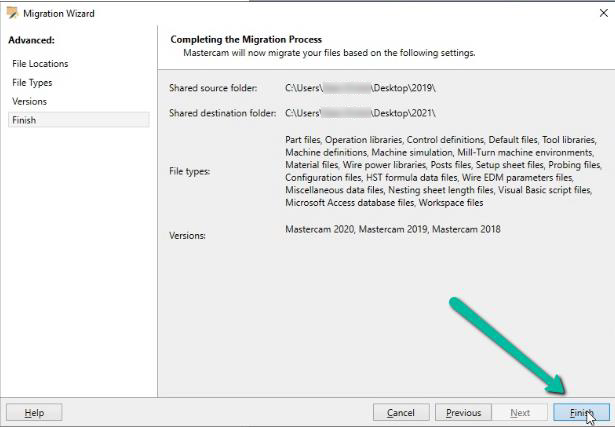

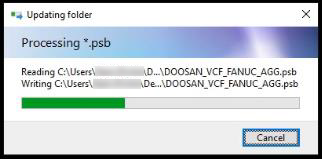

Click Finish, to run the Migration Wizard

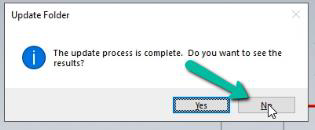

Once complete you will be prompted to see the results of the migration – Click No

Navigate to the previously empty folder you created on your desktop – It will now contain your updated files

If you open the .pst with a text viewer you can double check the version V21.00 = 2019, V22.00 = 2020, V23.00 = 2021 etc.

You can now place these files in their new location within the Shared Folder of the version they were updated to.

Default Locations
All Control & Machine Definitions:
C:\Users\Public\Documents\Shared Mastercam 2021\CNC_MACHINES
Mill post files go here: C:\Users\Public\Documents\Shared Mastercam 2021\mill\Posts
Lathe post files go here: C:\Users\Public\Documents\Shared Mastercam 2021\lathe\Posts
Router post files go here: C:\Users\Public\Documents\Shared Mastercam 2021\router\Posts
