Replace Content File

 Save the MCAM-CONTENT File that was sent to you on your desktop

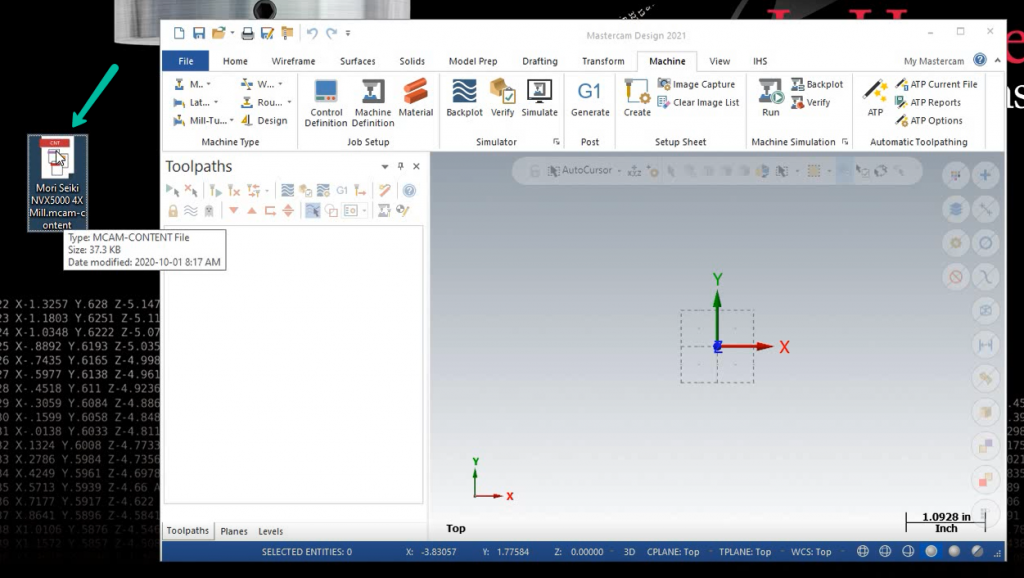

Drag the file into Mastercam

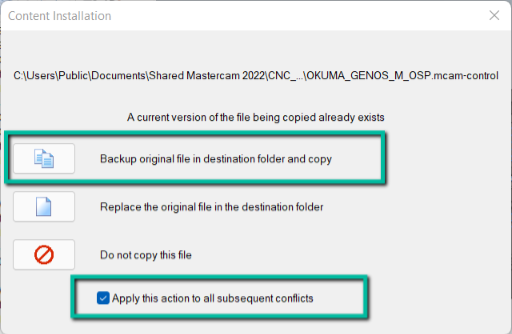

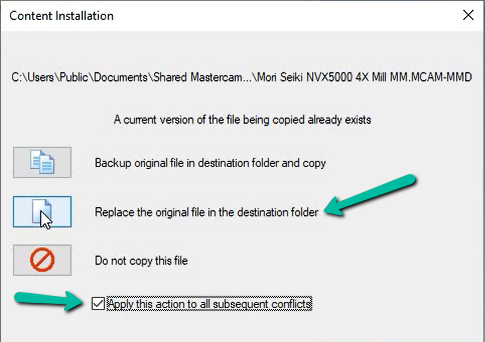

 Since these files already exist, we want to replace the original files in order to ensure we have the newest version – Click Apply this action to all subsequent conflicts then click Replace the original file in the destination folder

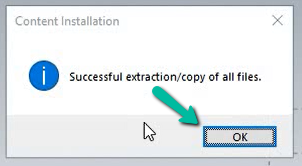

You will be notified of Successful extraction – Click Ok

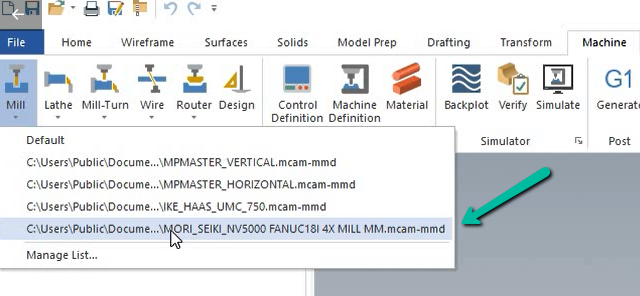

Select your machine type, then select the machine from the drop-down menu to load

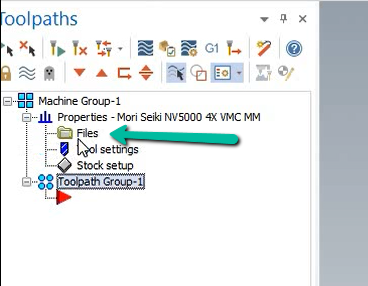

The Machine will load into your Toolpaths Manager, expand the Properties, and click on Files

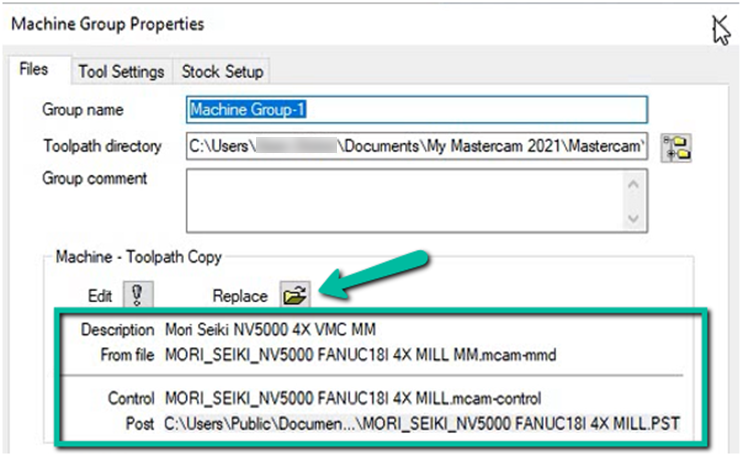

From here you can confirm that you have the correct Machine Definition, Control Definition and Post file.

* For Mastercam files that already have the machine loaded, click Replace and re-select your machine definition, this will load any changes made to the Machine or Control Definition.
