Status Bar Not Present

Status Bar Missing

Note: At any point that (version) is present, enter/insert/reference the version of Matercam in question.

i.e. A path states as ‘C:\Program Files\mcam(version)\common’ if you are working in Mastercam X8 the path will be ‘C:\Program Files\mcamX8/common’


Fix 1:

Close Mastercam

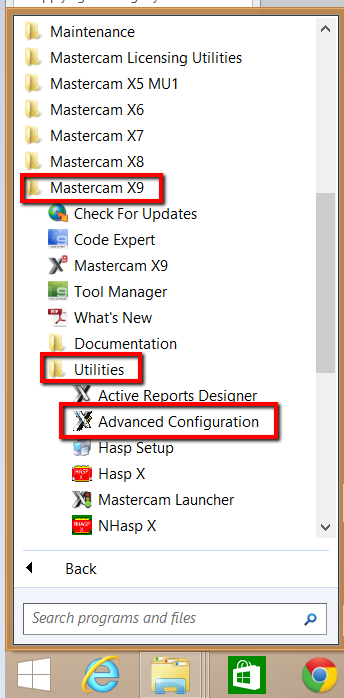

Start>All programs>Mastercam (version)>Utilities>Advanced Configuration


Advanced Configuration

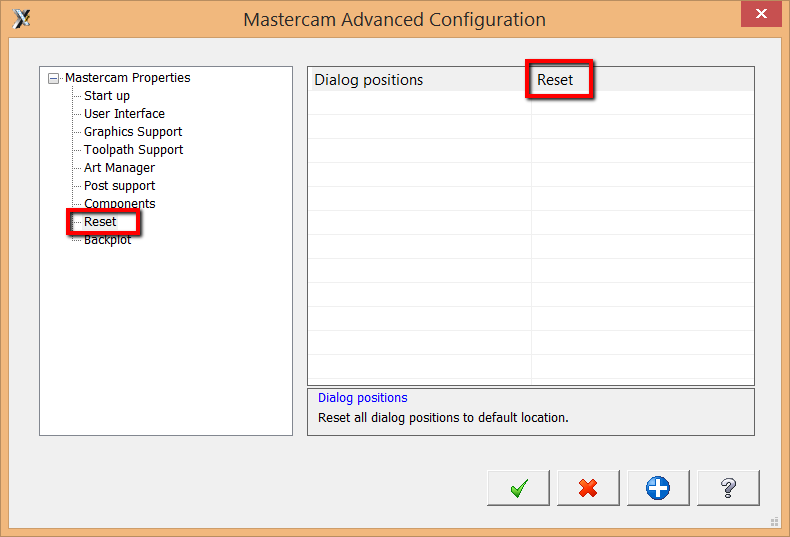

Set Dialog Positions to Reset


Reset Dialog Positions


Open Mastercam


Fix 2:

If the above does not fix this issue, rebuild registry (see rebuild registry document)
