Mastercam X8 Tips: How to Set & Save Operation Defaults








Mastercam allows for various settings to be specified as operation defaults so you do not have to re-set them every use. You can also save multiple default files so different users can use different defaults.


Navigate to the Files page under Machine Group Properties.

X8 Tips: Defaults-Toolpaths

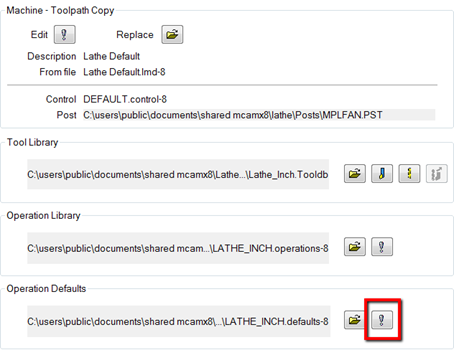

Select the Options button under Operation Defaults

X8 Tips: Default Options

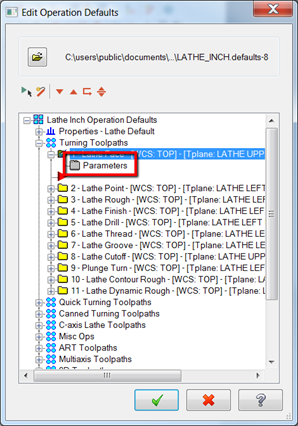

Then simply navigate to the operation you wish to modify, select Parameters and change the desired defaults.

X8 Tips: Default Parameters

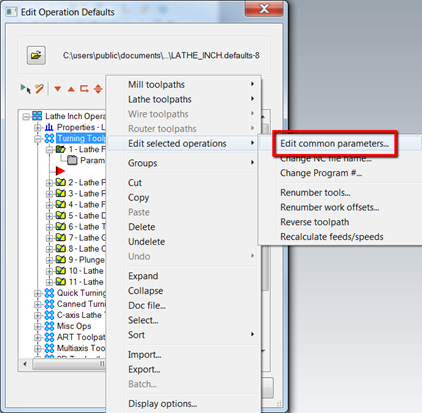

For editing numerous operations at once, select all the operations you wish to modify, right click in the operations field, and select Edit Common Parameters.

X8 Tips: Edit Common Parameters

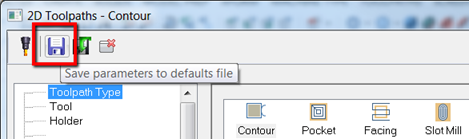

Also, when creating certain toolpaths, you have the option to save the given parameters to the defaults file.

X8 Tips: Default Save






In-the-know-footerIf you have any questions with regards to “Mastercam X8 Tips: How to Set & Save Operation Defaults” and how it may improve your Mastercam experience, please contact your customer solutions representative or leave a comment below.

If you have a tip you would like to see us cover, contact us with your suggestion!
