X9 HOW TO: Turn grid on or off

Settings > Configuration



1-configuration

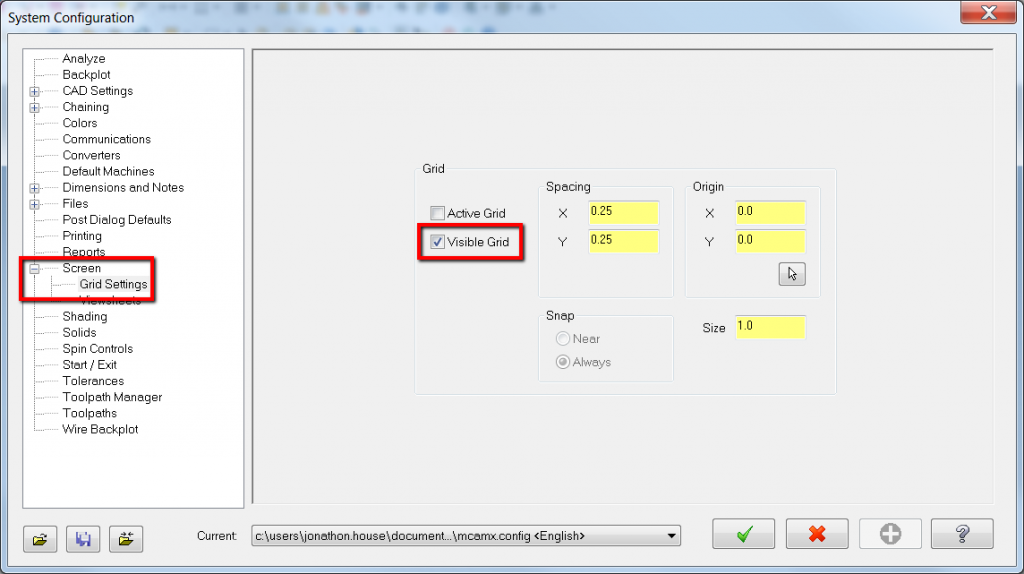

Screen > Grid Settings

2-grid settings

If you’re finding when creating geometry you’re snapping to the grid and this is not what you want, turn off Active Grid.


In-the-know-footerIf you have any questions with regards to “X9 HOW TO: Turn grid on or off” and how it may improve your Mastercam experience, you are welcome to email us.

If you have an “X9 HOW TO” you would like to see us cover, let us know in the comment section below.
