X8 Tips: 3-to-5-Axis Tilting

3-to-5-axis tilting banner

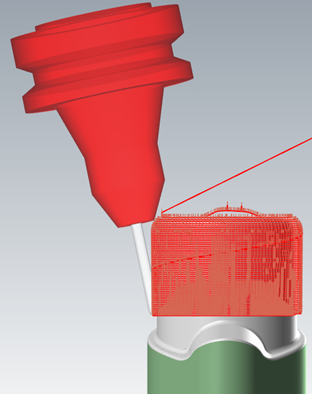

Axis Tilting


A new feature in X8, 3-to-5-axis tilting provides an easy-to-use introduction to 5-axis technology. Available for 3D HST finishing paths specifically, users can define collision checking and apply it to the shank and holder of the tool which will automatically utilize 5-axis motion.

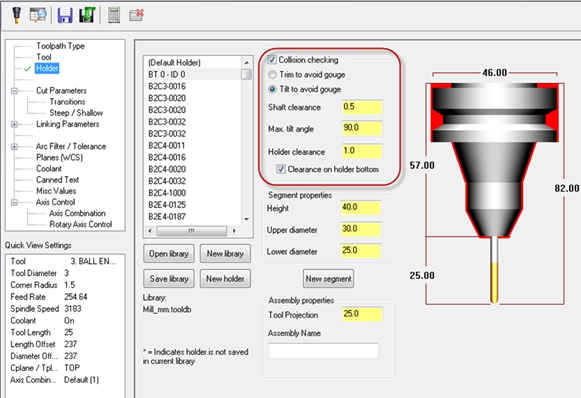

These options are found on the Holder page;

Collision Checking












As the functionality is driven from 3-axis toolpaths you can enjoy the simplicity of the toolpath creation that is involved, while also avoiding part collisions. Processing time is also typically stronger in the 3-axis toolpaths due to the multi-threaded capabilities!

Please note that this option does require a Multiaxis license.
